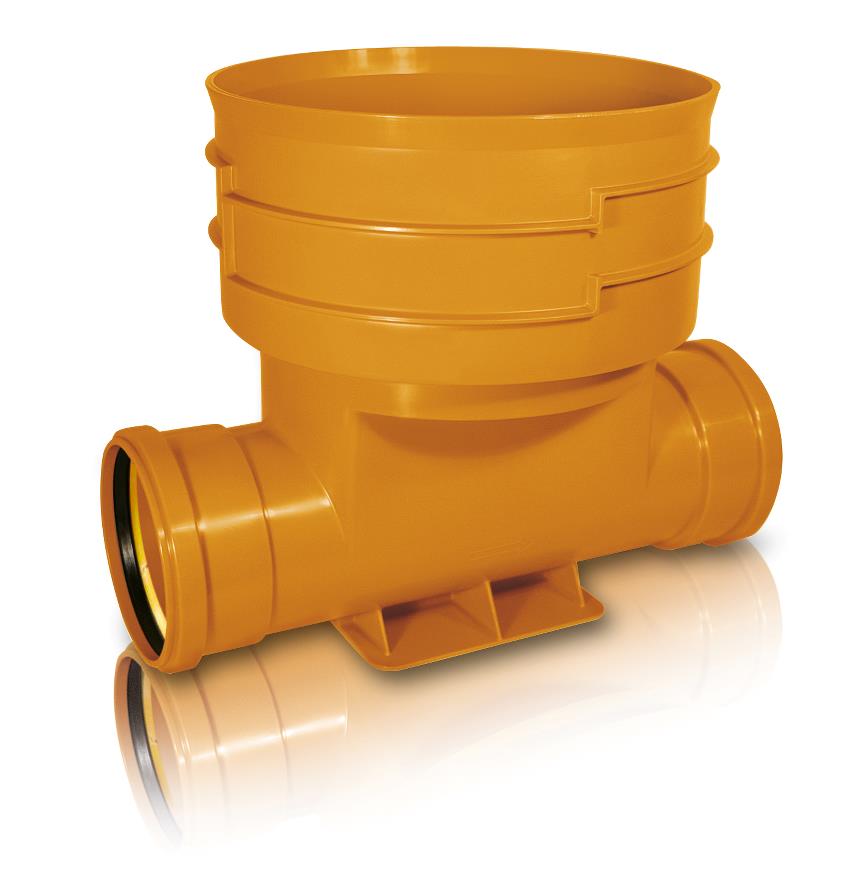

Inspection chamber Type 1
Inspection chambers with straight inlet/outlet.
PP-Copolymer.
Max. installation depth: 4m.
Ø315/Ø110 Inspection chamber TP1 . Rubber seal
Ø315/Ø160 Inspection chamber TP1 . Rubber seal.
Ø425/Ø160 Inspection chamber TP1 . Rubber seal.
Ø425/Ø200 Inspection chamber TP1 . Rubber seal

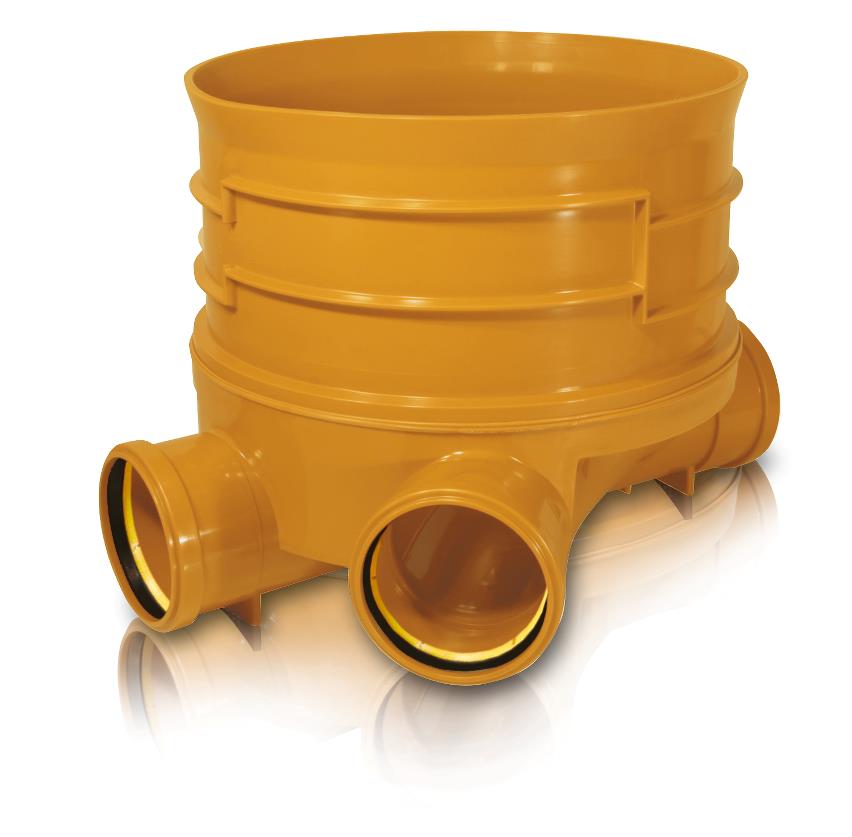

Inspection chamber Type 2
Inspection chamber with left/straight/right inlet + straight outlet.
PP-Copolymer.
Max. installation depth: 4m.
Ø315/Ø110 Inspection chamber TP2 . Rubber seal.
Ø315/Ø160 Inspection chamber TP2 . Rubber seal.
Ø425/Ø160 Inspection chamber TP2 . Rubber seal.
Ø425/Ø200 Inspection chamber TP2. Rubber seal

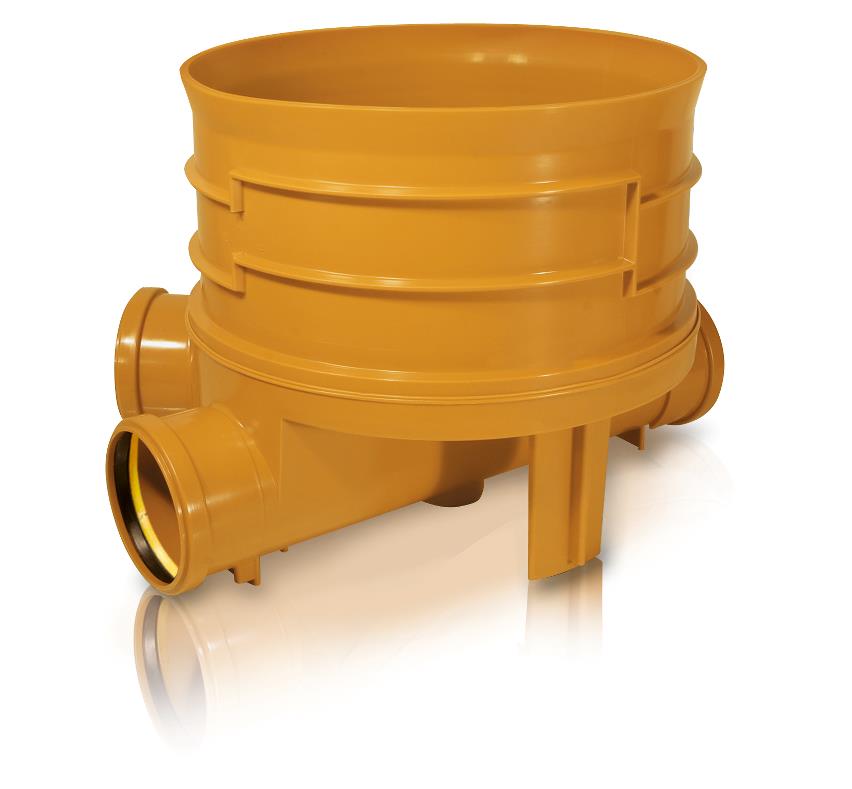

Inspection chamber Type 3
Inspection chamber with straight/left inlet + straight outlet.
PP-Copolymer.
Max. installation depth: 4m.
Ø315/Ø110 Inspection chamber TP3 . Rubber seal.
Ø315/Ø160 Inspection chamber TP3 . Rubber seal.
Ø425/Ø160 Inspection chamber TP3 . Rubber seal.
Ø425/Ø200 Inspection chamber TP3. Rubber seal
Inspection chamber Type 4
Inspection chamber with straight/right inlet + straight outlet.
PP-Copolymer.
Max. installation depth: 4m.
Ø315/Ø110 Inspection chamber TP4 . Rubber seal.
Ø315/Ø160 Inspection chamber TP4 . Rubber seal.
Ø425/Ø160 Inspection chamber TP4 . Rubber seal.
Ø425/Ø200 Inspection chamber TP4. Rubber seal
