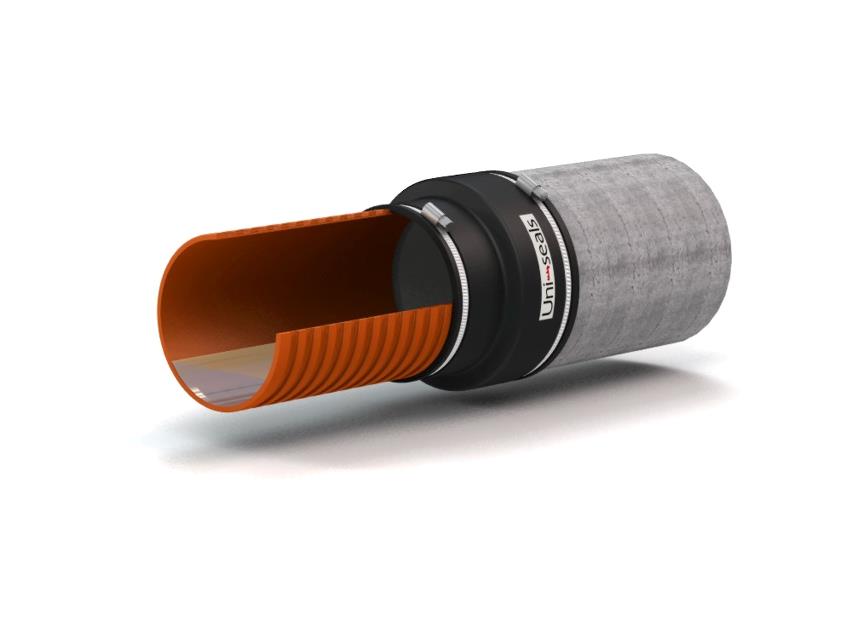

EPDM couplers - Concrete/PVC
The coupler is easy and quick to install, and at the same time an economical solution.
Made from EPDM rubber which is highly flexible even under low temperatures
The coupler is supplied as standard with stainless acid resistant clamp.
Clamps are mounted in a "groove" on the coupler, which ensures that they do not fall off during assembly.
Uni-seal coupler 100 concrete - 110 PVC. 137-152mm/100-115mm. NAC 1371
Uni-seal coupler 150 concrete - 160 PVC. 190-215mm/150-165mm. NAC 1904
Uni-seal coupler 200 concrete - 200 PVC. 260-285mm/108-205mm. NAC 2601
Uni-seal coupler 250 concrete - 250 PVC. 295-320mm/240-265mm. NAC 2958
Uni-seal coupler 300 concrete - 315 PVC. 360-385mm/300-325mm. NAC 3603
EPDM couplers - Clay/PVC
The coupler is easy and quick to install, and at the same time an economical solution.
Made from EPDM rubber which is highly flexible even under low temperatures
The coupler is supplied as standard with stainless acid resistant clamp.
Clamps are mounted in a "groove" on the coupler, which ensures that they do not fall off during assembly.
Uni-seal coupler 100 clay - 110 PVC. 121-136mm/100-115mm. NAC 1213
Uni-seal coupler 150 clay- 160 PVC. 170-192mm/144-160mm. NAC 1706
Uni-seal coupler 200 clay - 200 PVC. 200-265mm/190-215mm. NAC 2406
Uni-seal coupler 250 clay - 250 PVC. 295-320mm/240-265mm. NAC 2958
Uni-seal coupler 300 clay - 315 PVC. 335-360mm/295-320mm. NAC 3350
