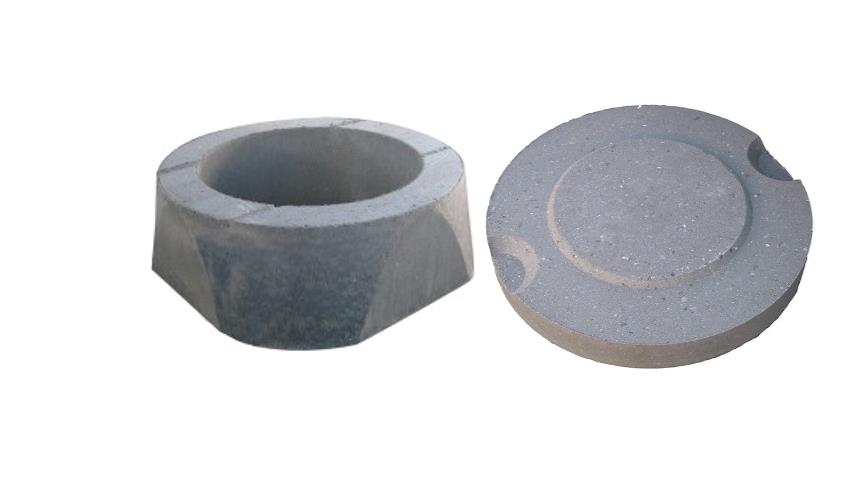

Ø315mm concrete cone w/top cover
Concrete cone set for PVC riser pipes. Consists of 1 Ø315mm cone and top cover.
No steel reinforcement.
Cones - Recycled plastic

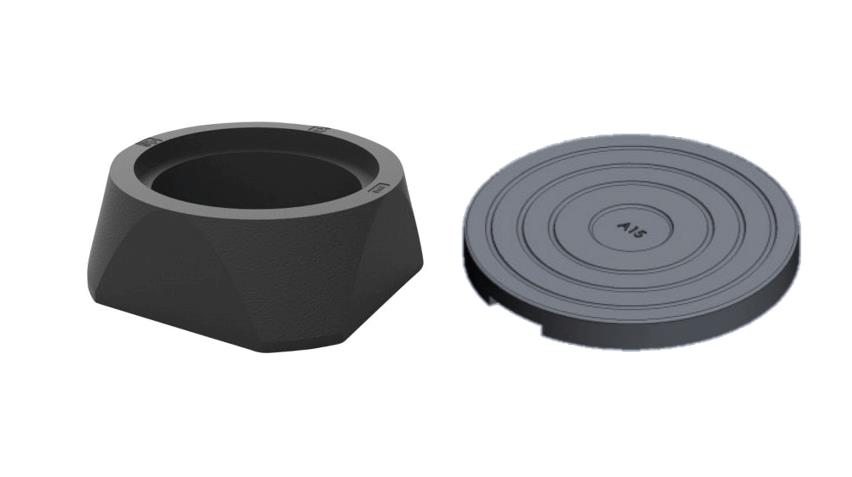

Square cone with rounded corners made from recycled plastic.
Sizes: Ø315mm & Ø425mm.
Item no.
Dimension
Description
Slot
Unit
Price
Item no. 950950
Dimension Ø315mm
Description
Ø315 cone, recycled plastic. 40t. OD. diam.: 546/500mm. ID. diam.: 360mm. Height: 190mm
Slot
Unit pcs.
Price Enquire
Item no. 9509515
Dimension Ø425mm
Description
Ø425 cone, recycled plastic. 40t. OD. diam.: 770/665mm. ID. diam.: 500mm. Height: 240mm
Slot
Unit pcs.
Price Enquire
Item no. 9509614
Dimension Ø315mm
Description
Ø315mm top cover made from recycled plastic
Slot
Unit pcs.
Price Enquire
Item no. 9509615
Dimension Ø425mm
Description
Ø425mm top cover made from recycled plastic
Slot
Unit pcs.
Price Enquire
Man hole - Ø600mm
Round manhole made from recycled plastic. Inside top diameter is Ø615mm. Outside bottom diameter is Ø950mm.
