Watercare 3-chamber tank, 2,3m3, 5ps

Watercare 3-chamber tank for pressure infiltration. Flygt pump DXM 35-5 installed, DN500 mm riser pipe.

Technical data:
- Tankvolume: 2300 liter
- Height: 1835 mm (incl. riser pipe)
- Diameter: 2140 mm
- Inlet 110 mm

Notice: Alarm and lid is not included.

Watercare 3-chamber tank, 4m3, 10ps

Watercare septic tank 10PE 4000l. Grundfos AP35B5006A1 pump installed. DN500 mm riser pipe.

Technical data:
- Tank volume: 4000 liter
- Height: 2080 mm (incl. riser pipe)
- Width: 1250 mm
- Inlet 110 mm

Watercare sediment tank, 2,3m3, 5ps

Watercare 3-chamber tank 2300 liter for sedimentation, 5ps

Technical data:
- Tank volume: 2300 liter
- Height: 1835 mm (incl. riser pipe)
- Diameter: 2140 mm
- Inlet 110 mm

Notice: Alarm and lid is not included.

Watercare sediment tank, 2,3m3, 5ps

Watercare 3-chamber tank 2300 liter for sedimentation w/integrated distribution well, 5ps.

Technical data:
- Tank volume: 2300 liter
- Height: 1835 mm (incl. riser pipe)
- Diameter: 2140 mm
- Inlet 110 mm

Notice: Alarm and lid is not included.

Watercare sediment tank, 4m3, 10ps

Watercare 3-chamber tank 4000 liter for sedimentation, 10ps.

Technical data:
- Tank volume: 4000 liter
- Height: 2080 mm (inkl. riser pipe)
- Width: 1250 mm
- Inlet: 110 mm

Watercare collection tank 3,3 m3

Watercare 3300 liter collection tank w/riser pipe.
Lid not included.

Technical data:
- Tank volume: 3300 liter
- Height: 1970 mm (inkl. riser pipe)
- Width: 2300 mm
- Inlet: 110 mm

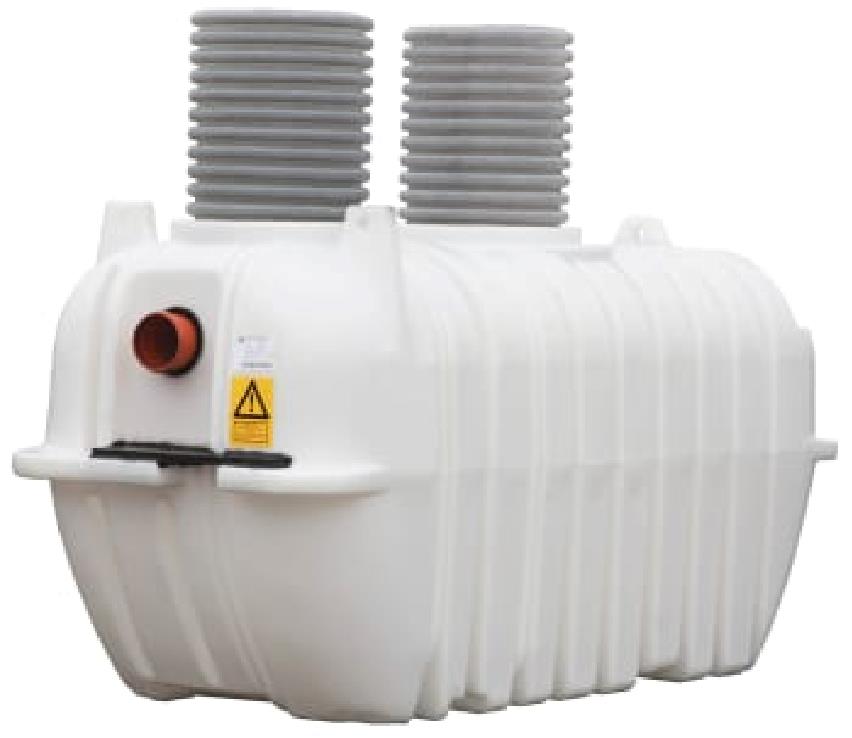

Watercare coalescence separator

WaterCare coalescence separator (KL 1), 10 l/sec. 1600 liter sludge disposal volume. Ø160 mm inlet/outlet. Self-actuated closure lock. 2 x 0,5 m riser pipe Ø500/540 mm included. ES334 alarm for liquid levels. Coalescense filter can be serviced from terrain.

Technical data:
- Tank volume: 3300 liter
- Height: 2100 mm
- Width: 1240 mm
- Length: 3128 mm
- Inlet/outlet: 160 mm.

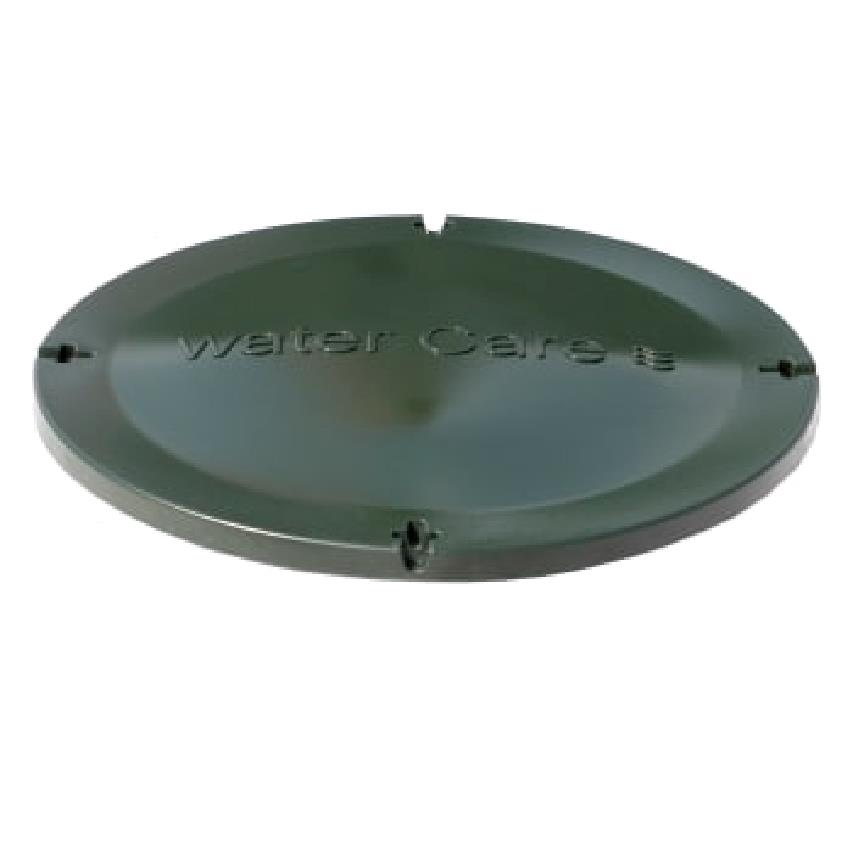

Watercare top lid

Watercare 500 mm EN124-approved top lid w/rubber seal for Watercare tanks and separators that has a DN500mm riser pipe.
The lid is supplied with lockable mounting brackets. (not displayed on picture)
