Whale 12V pumps

The Whale pumps are high flow rate, long life, submersible impeller pumps characterised by

  • Simple, compact and an economical solution
  • Long life, very quiet with low power consumption
  • An inexpensive way to update a manual to an electric system

The pumps are supplied without cable. Rotek can pre-install cable upon request.



Item no.
Dimension
Description
Slot
Unit
Price
Item no. 03510006
Dimension
Description

Whale Premium Sub pump, max. 13 l/min – 1,0 bar (GP1352)

Slot
Unit pcs.
Price Enquire
Item no. 03510010
Dimension
Description

Whale High Flow Sub pump, max. 16 l/min – 1,4 bar (GP1652)

Slot
Unit pcs.
Price Enquire
Item no. 03510011
Dimension
Description

Whale High Flow Inline booster pump, max. 16 l/min – 1,4 bar (GP1692)

Slot
Unit pcs.
Price Enquire

03510006, 03510010

03510008, 03510011


Pump kit 12V

The Whale pumps are high flow rate, long life, submersible impeller pumps characterised by:

  • Simple, compact and an economical solution
  • Long life, very quiet with low power consumption
  • An inexpensive way to update a manual to an electric system

The pump kits are ready-to-use sets including 15/ 21 m cable, cable socket, etc.



Item no.
Dimension
Description
Slot
Unit
Price
Item no. 03510012
Dimension
Description

Whale Mini Purger, max. 11 l/min – 1,2 bar (WP4012)

Slot
Unit pcs.
Price Enquire
Item no. 03510014
Dimension
Description

Whale Super Purger, max. 13 l/min – 1,8 bar (WP6012)

Slot
Unit pcs.
Price Enquire

03510012

03510014


Comet 12V Pumps

12V submersible impeller pumps, supplied with 1m cable mounted.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 03510000
Dimension
Description

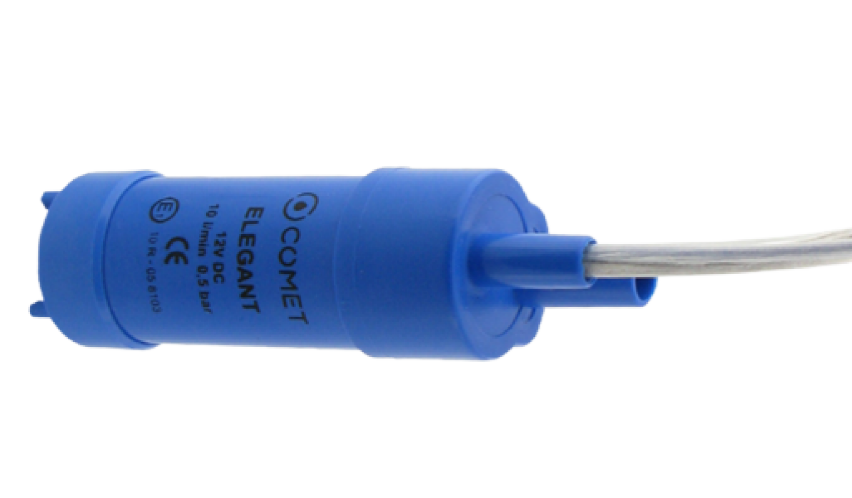

Comet Elegant. 10 l/min - 0,5 bar

Slot
Unit pcs.
Price Enquire
Item no. 03510002
Dimension
Description

Comet Geo-Inline-Plus. 19 l/min - 1,0bar

Slot
Unit pcs.
Price Enquire
Item no. 03510005
Dimension
Description

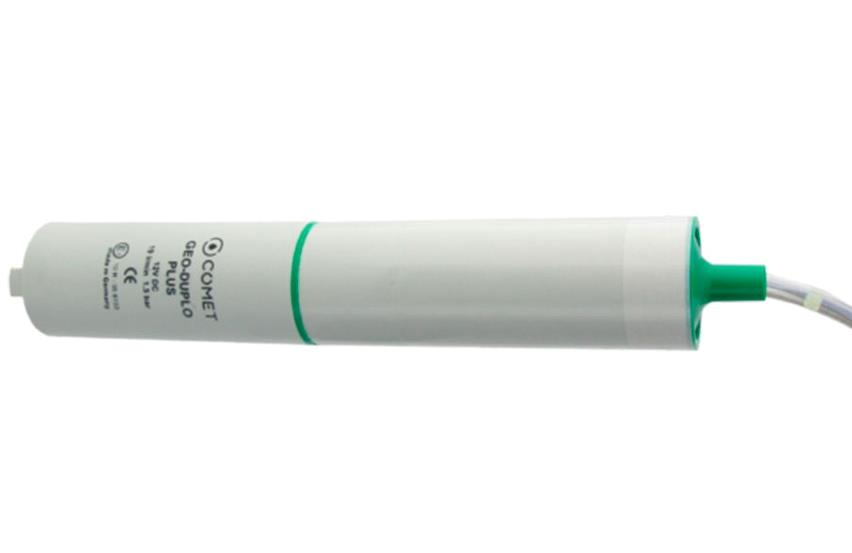

Comet Geo-Dublo-Plus. 19l/min - 1,5bar

Slot
Unit pcs.
Price Enquire
Item no. 03510004
Dimension
Description

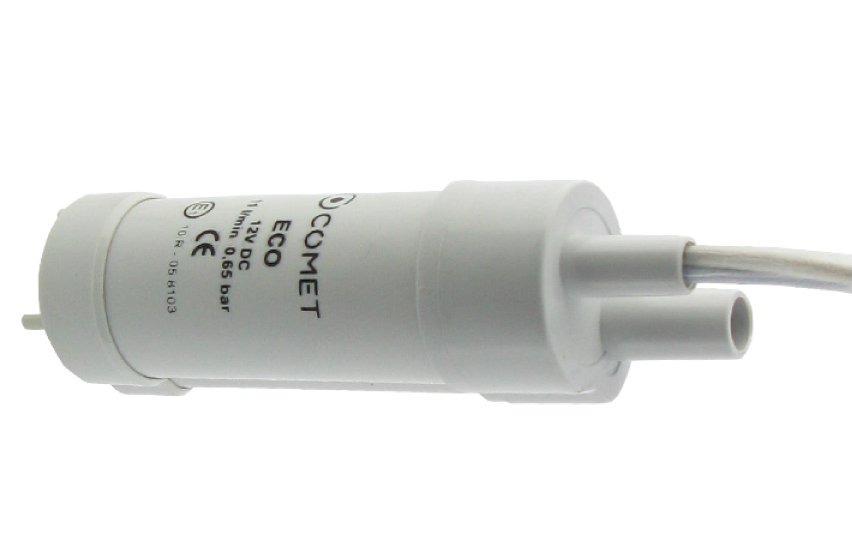

Pumpe Comet ECO. 12V. 11 l/min. 0,65 bar.

Slot
Unit pcs.
Price Enquire

03510000

03510002

03510005


Accessories for 12V pumps

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 03510022
Dimension
Description

Cable for 12V pumps, 2 x 1,5 mm

Slot
Unit m
Price Enquire
Item no. 03510023
Dimension
Description

Cable for 12V pumps, 2 x 2,5 mm

Slot
Unit m
Price Enquire

Grundfos MP1 Pumps

The MP1 pump is specially designed for purging and sampling monitoring wells with a diameter of at least 50 mm and a depth up to 90 meters. The pump motor is controlled by a special adjustable frequency converter. Since the frequency is continuously adjustable, the capacity of the Grundfos MP 1 pump can be controlled from 0 to 2 m3/hour. This creates a constant flow of anaerobic water.

Each new measurement must be purged before samples can be taken. The large capacity of the MP1 pump ensures that the measuring point is quickly purged. By setting it at a lower pumping capacity, the MP 1 can also be used for sampling. Built-in safeguards protect the MP1 pump and frequency converter against overloads. The actual frequency can be read out on a display.

Benefits of the MP1 submersible pump are:

  • High pumping capacity for purging, slow pumping for sampling
  • Easy to install; mobile
  • Resistant to corrosive liquids
  • The pumped material only comes into contact with stainless steel and Teflon
  • Anaerobic sampling
  • Simple cleaning procedures

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 035000030
Dimension
Description

MP1 Pump w/ 30m cable

Slot
Unit pcs.
Price Enquire
Item no. 035000060
Dimension
Description

MP1 Pump w/ 60m cable

Slot
Unit pcs.
Price Enquire
Item no. 0350001
Dimension
Description

MP1 Pump w/o cable

Slot
Unit pcs.
Price Enquire
Item no. 035000130
Dimension
Description

Cable for MP1 Pump - 30m

Slot
Unit pcs.
Price Enquire
Item no. 035000160
Dimension
Description

Cable for MP1 Pump - 60m

Slot
Unit pcs.
Price Enquire
Item no. 0350002
Dimension
Description

MP1 Converter in case

Slot
Unit pcs.
Price Enquire

Inertial pumps (ball valves)

Stainless steel ball valves to be used as inertial pumps with PE tubing.

The Inertial Pump is a groundwater pump, simply consisting of a riser tube with a one-way valve at the foot. The valve allows water to enter the tubing as it is pushed downward, and retains the water when the tubing is pulled upward again. The inertia of the water itself provides the force to carry it up to the surface.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 121305
Dimension
Description

Ball valve for tube 8/6 mm, set of 5 pcs

Slot
Unit pk
Price Enquire
Item no. 121303
Dimension
Description

Ball valve for tube 10/8 mm, set of 5 pc.

Slot
Unit pk
Price Enquire
Item no. 121306
Dimension
Description

Ball valve for tube 12/10 mm, set of 5 pc

Slot
Unit pk
Price Enquire

Eijkelkamp peristaltic pump 12V

The peristaltic pump, specially designed for use in the field, is battery powered and microprocessor controlled. The microprocessor enables an adjustable constant number of revolutions (which can be stored in memory), protection against overload and various modes of external control. Controlling the peristaltic pump can be executed via the key-pad on the front panel. A built-in maintenance free 12 Volt battery enables you to use the pump 2 to 5 hours continuously (depending on load). The pump, with CE certification, is splashproof (IP 64) and can be used in the field without problems. The apparatus can be used in all positions. The pump is designed for long-term professional use in unfavourable circumstances.

Benefits of the peristaltic pump 12 V:

  • Integrated 4.5 hrs battery, no spaghetti of cables
  • Samples all wells with water tables < 9.5m
  • Ideal to purge AND sample low volume wells
  • Pumps 100 – 2300 ml/min
  • Ideal for micro-purging and low flow sampling
  • Low loss of volatiles if used with 6x8 PE tubing and suction <6 meters water
  • No cross contamination: Exchangeable cheap and contaminant free tubing
  • Renewable tubing cares for highest reproducibility of sampling results on volatiles compared to other pumps
  • Pumps air as well as water


Item no.
Dimension
Description
Slot
Unit
Price
Item no. 1225
Dimension
Description

Eijkelkamp peristaltic pump 12V

Slot
Unit pcs.
Price Enquire
Item no. 122524
Dimension
Description

Charger for peristaltic pump 115-230V

Slot
Unit pcs.
Price Enquire
Item no. 122525
Dimension
Description

Cable with connector to 12V cigarette lighter plug

Slot
Unit pcs.
Price Enquire
