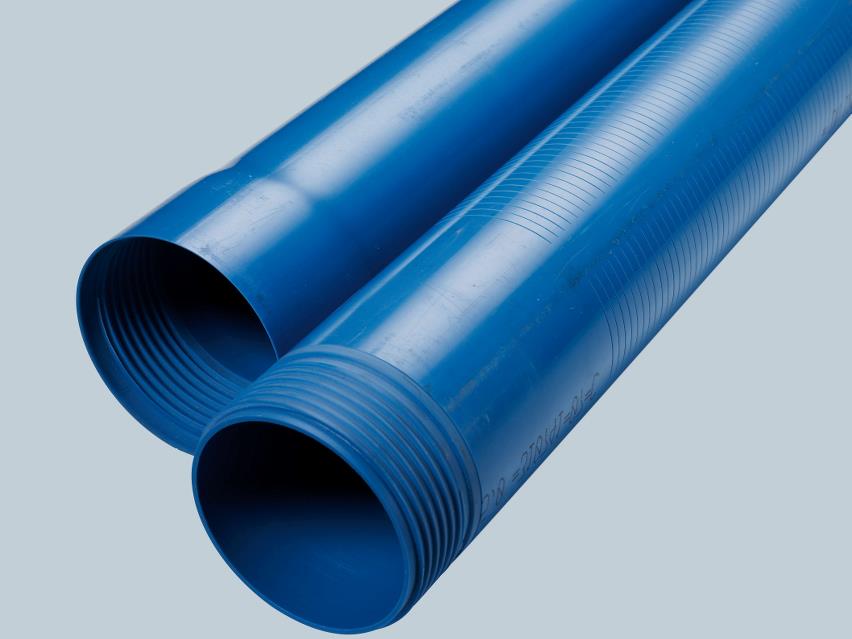

DIN4925 casing pipes and screens

PVC casing pipes and screens DIN4925 certified; the German norm Well screens and casings of unplasticized polyvinylchloride (PVC‐U) for tube wells”.

The DIN4925 products are made from PVC-U (hard PVC without softeners) without lead.

Rotek’s DIN4925 pipes and screen are KTW and DVGW certified ("Materialien in Kontakt mit Trinkwasser").

These casing pipes and screens can also be supplied with flush joint threads, but without the DIN4925 approval.

More dimensions, lengths and slot sizes available upon request.



Item no.
Dimension
Description
Slot
Unit
Price
Item no. 08DN80RG1
Dimension Ø88 x 4,0 mm
Description

DN80 PVC Plain pipe 1m

Slot
Unit pcs.
Price Enquire
Item no. 08DN80RG2
Dimension Ø88 x 4,0 mm
Description

DN80 PVC Plain pipe 2m

Slot
Unit pcs.
Price Enquire
Item no. 08DN80RG3
Dimension Ø88 x 4,0 mm
Description

DN80 PVC Plain pipe 3m

Slot
Unit pcs.
Price Enquire
Item no. 08DN80RG4
Dimension Ø88 x 4,0 mm
Description

DN80 PVC Plain pipe 4m

Slot
Unit pcs.
Price Enquire
Item no. 08DN80FG105
Dimension Ø88 x 4,0 mm
Description

DN80 PVC Filter 1m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN80FG205
Dimension Ø88 x 4,0 mm
Description

DN80 PVC Filter 2m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN80FG305
Dimension Ø88 x 4,0 mm
Description

DN80 PVC Filter 3m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN80FG405
Dimension Ø88 x 4,0 mm
Description

DN80 PVC Filter 4m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN100RG1
Dimension Ø113 x 5,0 mm
Description

DN100 PVC Plain pipe 1m

Slot
Unit pcs.
Price Enquire
Item no. 08DN100RG2
Dimension Ø113 x 5,0 mm
Description

DN100 PVC Plain pipe 2m

Slot
Unit pcs.
Price Enquire
Item no. 08DN100RG3
Dimension Ø113 x 5,0 mm
Description

DN100 PVC Plain pipe 3m

Slot
Unit pcs.
Price Enquire
Item no. 08DN100RG4
Dimension Ø113 x 5,0 mm
Description

DN100 PVC Plain pipe 4m

Slot
Unit pcs.
Price Enquire
Item no. 08DN100FG105
Dimension Ø113 x 5,0 mm
Description

DN100 PVC Filter 1m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN100FG205
Dimension Ø113 x 5,0 mm
Description

DN100 PVC Filter 2m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN100FG305
Dimension Ø113 x 5,0 mm
Description

DN100 PVC Filter 3m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN100FG405
Dimension Ø113 x 5,0 mm
Description

DN100 PVC Filter 4m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN115RG1
Dimension Ø125 x 7,5 mm
Description

DN115 PVC Plain pipe 1m

Slot
Unit pcs.
Price Enquire
Item no. 08DN115RG2
Dimension Ø125 x 7,5 mm
Description

DN115 PVC Plain pipe 2m

Slot
Unit pcs.
Price Enquire
Item no. 08DN115RG3
Dimension Ø125 x 7,5 mm
Description

DN115 PVC Plain pipe 3m

Slot
Unit pcs.
Price Enquire
Item no. 08DN115RG4
Dimension Ø125 x 7,5 mm
Description

DN115 PVC Plain pipe 4m

Slot
Unit pcs.
Price Enquire
Item no. 08DN115FG105
Dimension Ø125 x 7,5 mm
Description

DN115 PVC Filter 1m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN115FG205
Dimension Ø125 x 7,5 mm
Description

DN115 PVC Filter 2m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN115FG305
Dimension Ø125 x 7,5 mm
Description

DN115 PVC Filter 3m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN115FG405
Dimension Ø125 x 7,5 mm
Description

DN115 PVC Filter 4m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN125RG1
Dimension Ø140 x 6,5 mm
Description

DN125 PVC Plain pipe 1m

Slot
Unit pcs.
Price Enquire
Item no. 08DN125RG2
Dimension Ø140 x 6,5 mm
Description

DN125 PVC Plain pipe 2m

Slot
Unit pcs.
Price Enquire
Item no. 08DN125RG3
Dimension Ø140 x 6,5 mm
Description

DN125 PVC Plain pipe 3m

Slot
Unit pcs.
Price Enquire
Item no. 08DN125RG4
Dimension Ø140 x 6,5 mm
Description

DN125 PVC Plain pipe 4m

Slot
Unit pcs.
Price Enquire
Item no. 08DN125FG105
Dimension Ø140 x 6,5 mm
Description

DN125 PVC Filter 1m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN125FG2075
Dimension Ø140 x 6,5 mm
Description

DN125 PVC Filter 2 m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN125FG405
Dimension Ø140 x 6,5 mm
Description

DN125 PVC Filter 4 m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN125FG305
Dimension Ø140 x 6,5 mm
Description

DN125 PVC Filter 3m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN150RG
Dimension Ø165 x 7,5 mm
Description

DN150 PVC Plain pipe 1m

Slot
Unit pcs.
Price Enquire
Item no. 08DN150RG2
Dimension Ø165 x 7,5 mm
Description

DN150 PVC Plain pipe 2m

Slot
Unit pcs.
Price Enquire
Item no. 08DN150RG3
Dimension Ø165 x 7,5 mm
Description

DN150 PVC Plain pipe 3m

Slot
Unit pcs.
Price Enquire
Item no. 08DN150RG4
Dimension Ø165 x 7,5 mm
Description

DN150 PVC Plain pipe 4m

Slot
Unit pcs.
Price Enquire
Item no. 08DN150FG105
Dimension Ø165 x 7,5 mm
Description

DN150 PVC Filter 1m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN150FG205
Dimension Ø165 x 7,5 mm
Description

DN150 PVC Filter 2m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN150FG305
Dimension Ø165 x 7,5 mm
Description

DN150 PVC Filter 3m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN150FG405
Dimension Ø165 x 7,5 mm
Description

DN150 PVC Filter 4m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN175RG1
Dimension Ø195 x 8,5 mm
Description

DN175 PVC Plain pipe 1m

Slot
Unit pcs.
Price Enquire
Item no. 08DN175RG2
Dimension Ø195 x 8,5 mm
Description

DN175 PVC Plain pipe 2m

Slot
Unit pcs.
Price Enquire
Item no. 08DN175RG3
Dimension Ø195 x 8,5 mm
Description

DN175 PVC Plain pipe 3m

Slot
Unit pcs.
Price Enquire
Item no. 08DN175RG4
Dimension Ø195 x 8,5 mm
Description

DN175 PVC Plain pipe 4m

Slot
Unit pcs.
Price Enquire
Item no. 08DN175FG105
Dimension Ø195 x 8,5 mm
Description

DN175 PVC Filter 1m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN175FG205
Dimension Ø195 x 8,5 mm
Description

DN175 PVC Filter 2m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN175FG305
Dimension Ø195 x 8,5 mm
Description

DN175 PVC Filter 3m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN175FG405
Dimension Ø195 x 8,5 mm
Description

DN175 PVC Filter 4m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN200RG1
Dimension Ø225 x 10,0 mm
Description

DN200 PVC Plain pipe 1m

Slot
Unit pcs.
Price Enquire
Item no. 08DN200RG2
Dimension Ø225 x 10,0 mm
Description

DN200 PVC Plain pipe 2m

Slot
Unit pcs.
Price Enquire
Item no. 08DN200RG3
Dimension Ø225 x 10,0 mm
Description

DN200 PVC Plain pipe 3m

Slot
Unit pcs.
Price Enquire
Item no. 08DN200RG4
Dimension Ø225 x 10,0 mm
Description

DN200 PVC Plain pipe 4m

Slot
Unit pcs.
Price Enquire
Item no. 08DN200FG105
Dimension Ø225 x 10,0 mm
Description

DN200 PVC Filter 1m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN200FG205
Dimension Ø225 x 10,0 mm
Description

DN200 PVC Filter 2m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN200FG305
Dimension Ø225 x 10,0 mm
Description

DN200 PVC Filter 3m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08DN200FG405
Dimension Ø225 x 10,0 mm
Description

DN200 PVC Filter 4m

Slot 0,5mm
Unit pcs.
Price Enquire
