RSC casing pipes and screens with VA-approved couplers

The RSC is a unique system with double-socket couplers ensuring a guaranteed tight seal of PVC casings and screens. The socket system is easy and quick to install and the special locking strips prevent faulty installation. The RSC system is developed by Rotek together with the Danish Well-Drillers Association, and it was VA-approved in 2016

The RSC couplers are manufactured from EN1452 PVC-U pipes, and they have the Danish VA-approval. The RSC casings and screens are KTW and DVGW certified ("Materialien in Kontakt mit Trinkwasser") and meet the demands of the Danish GDV ("Godkendt til Drikkevand").

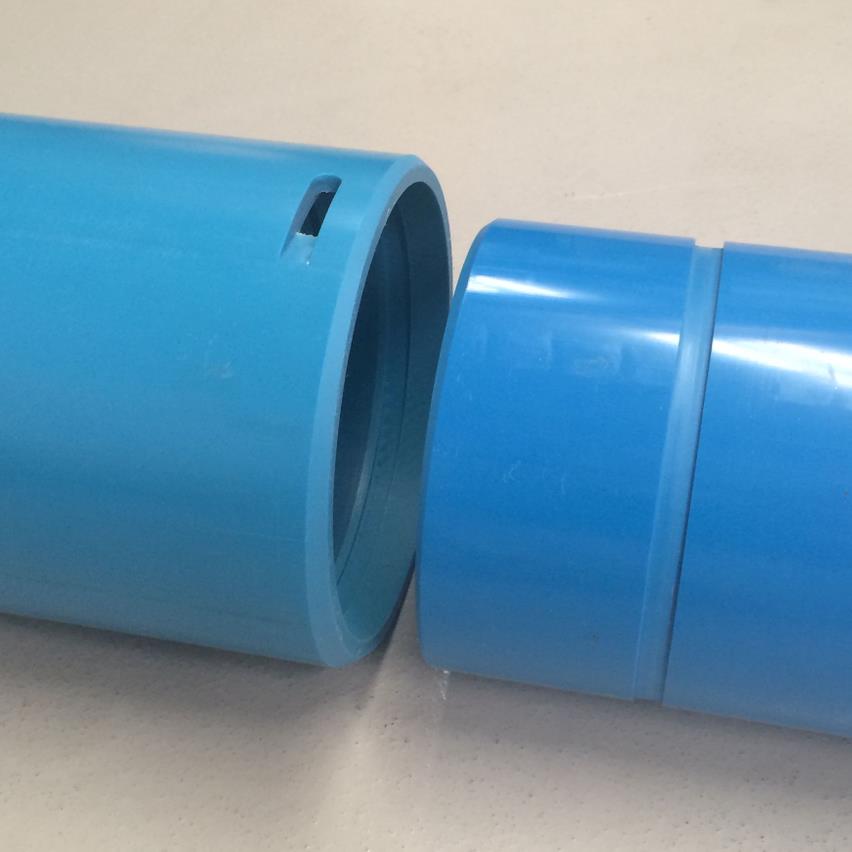

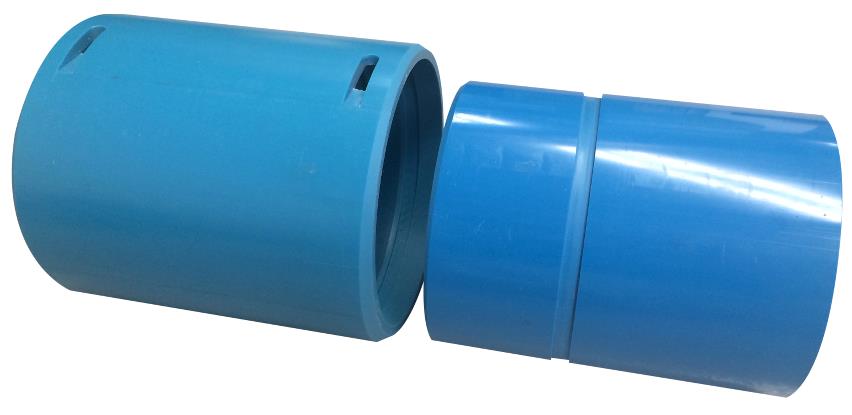

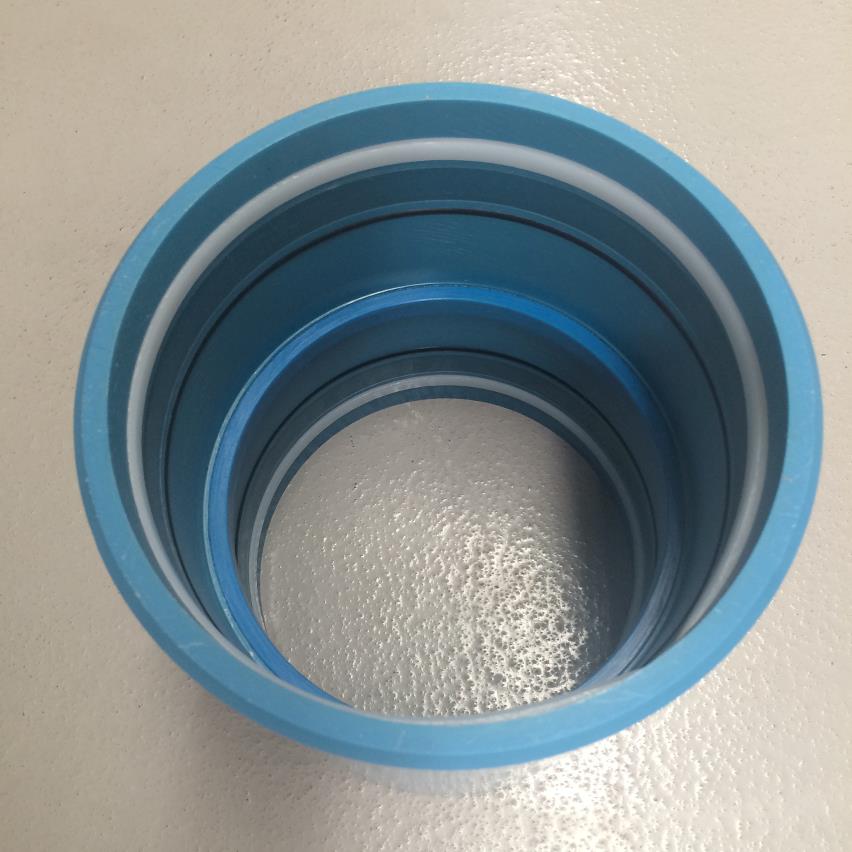

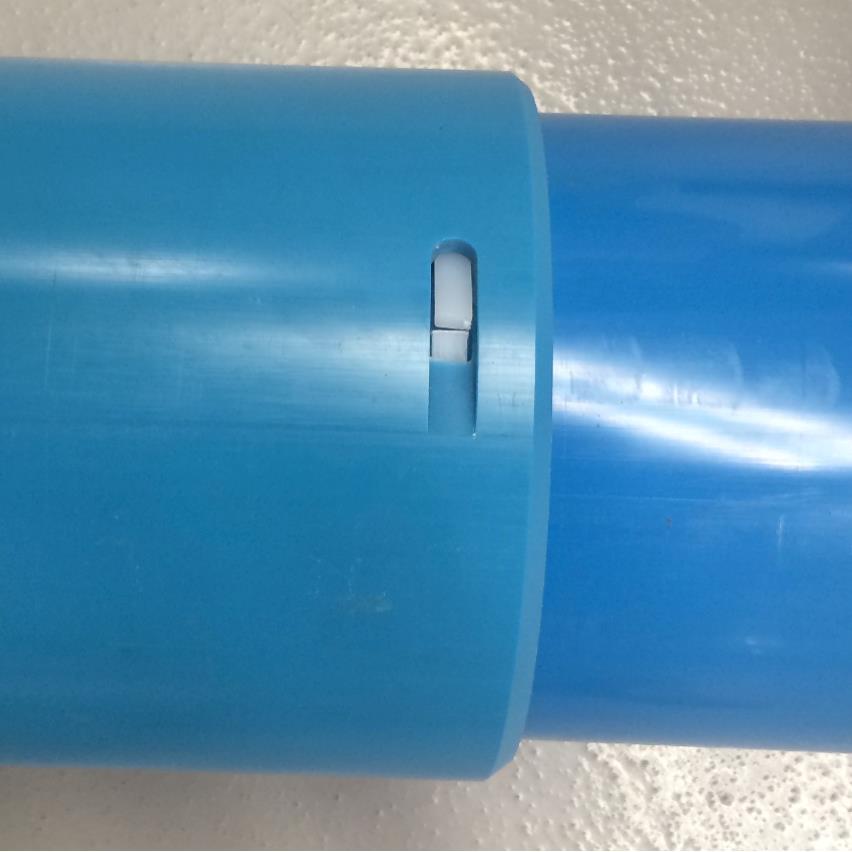

The RSC double socket couplers have a center-stop, groove with o-ring, swelling sealing tape, and locking strip with a square profile. The RSC couplers are used with RSC casings and screens, which have machined grooves for the locking strip.

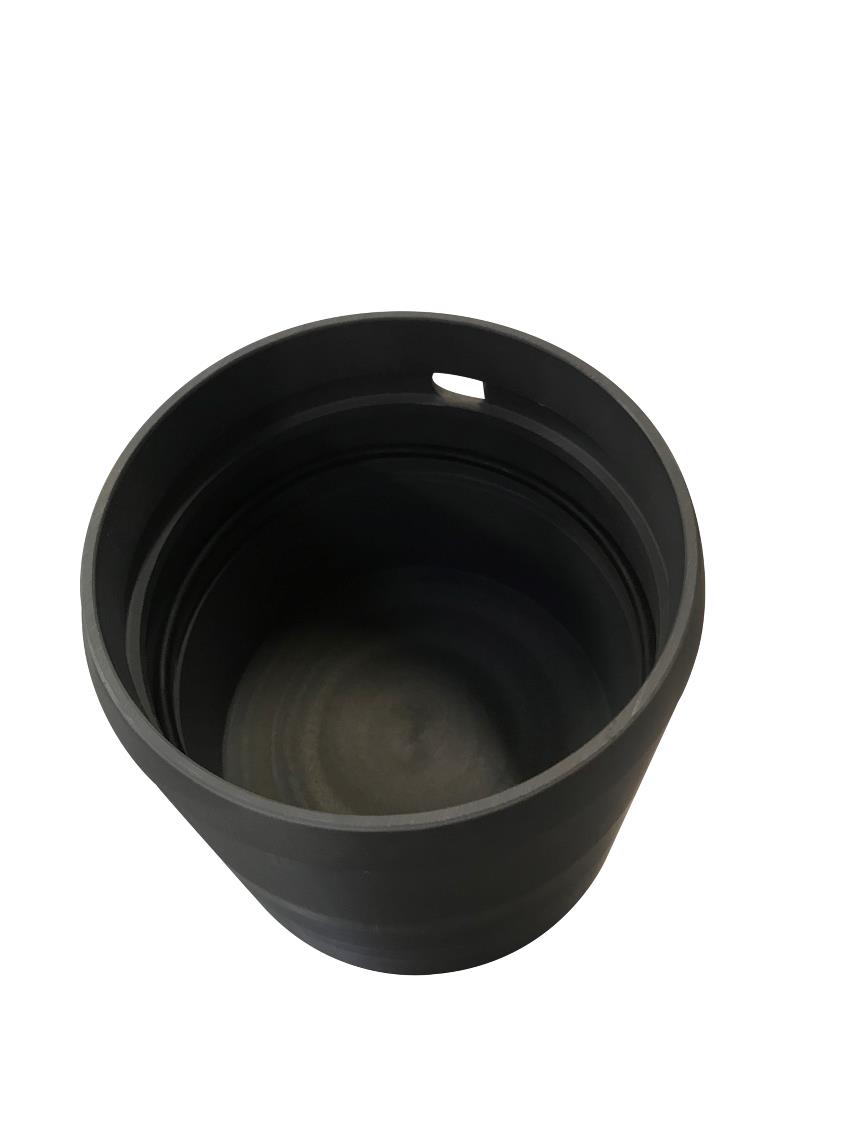

More dimensions, lengths and slot sizes available upon request. RSC is also available in HDPE.



Item no.
Dimension
Description
Slot
Unit
Price
Item no. 08RSC090R6
Dimension Ø90 x 4,3mm
Description

Ø90*4,3 PVC RSC Plain pipe 6m

Slot
Unit pcs.
Price Enquire
Item no. 08RSC090F605
Dimension Ø90 x 4,3mm
Description

Ø90*4,3 PVC RSC Screen 6m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08RSC090C
Dimension
Description

Ø90 PVC RSC Double socket coupler

Slot
Unit pcs.
Price Enquire
Item no. 08RSC110R6
Dimension Ø110 x 5,3mm
Description

Ø110*5,3 PVC RSC Plain pipe 6m

Slot
Unit pcs.
Price Enquire
Item no. 08RSC110F605
Dimension Ø110 x 5,3mm
Description

Ø110*5,3 PVC RSC Screen 6m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08RSC110C
Dimension
Description

Ø110 PVC RSC Double socket coupler

Slot
Unit pcs.
Price Enquire
Item no. 08RSC125R6
Dimension Ø125 x 6,0mm
Description

Ø125*6,0 PVC RSC Plain pipe 6m

Slot
Unit pcs.
Price Enquire
Item no. 08RSC125F605
Dimension Ø125 x 6,0mm
Description

Ø125*6,0 PVC RSC Screen 6m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08RSC125C
Dimension
Description

Ø125 PVC RSC Double socket coupler

Slot
Unit pcs.
Price Enquire
Item no. 08RSC160R6
Dimension Ø160 x 7,7mm
Description

Ø160*7,7 PVC RSC Plain pipe 6m

Slot
Unit pcs.
Price Enquire
Item no. 08RSC160F605
Dimension Ø160 x 7,7mm
Description

Ø160*7,7 PVC RSC Screen 6m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08RSC160C
Dimension
Description

Ø160 PVC RSC Double socket coupler

Slot
Unit pcs.
Price Enquire
Item no. 08RSC200R6
Dimension Ø200 x 9,6 mm
Description

Ø200x9,6 PVC RSC Plain pipe 6m

Slot
Unit pcs.
Price Enquire
Item no. 08RSC200F605
Dimension Ø200 x 9,9mm
Description

Ø200x9,9 PVC RSC Screen 6m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08RSC200C
Dimension
Description

Ø200 PVC RSC Double socket coupler

Slot
Unit pcs.
Price Enquire
Item no. 08RSC225R6
Dimension Ø225 x 10,8 mm
Description

Ø225*10,8 PVC RSC Plain pipe 6m

Slot
Unit pcs.
Price Enquire
Item no. 08RSC225F605
Dimension Ø225 x 10,8 mm
Description

Ø225x10,8 PVC RSC Screen 6m

Slot 0,5mm
Unit pcs.
Price Enquire
Item no. 08RSC225C
Dimension
Description

Ø225 PVC RSC Double socket coupler

Slot
Unit pcs.
Price Enquire
Item no. 08RSC250R6
Dimension Ø250 x 12,0mm
Description

Ø250*12,0 PVC RSC Plain pipe 6m

Slot
Unit pcs.
Price Enquire
Item no. 08RSC250F605
Dimension Ø250 x 12,0mm
Description

Ø250*12,0 PVC RSC Screen 6m

Slot 0,75mm
Unit pcs.
Price Enquire
Item no. 08RSC250C
Dimension
Description

Ø250 PVC RSC Double socket coupler

Slot
Unit pcs.
Price Enquire
Item no. 08RSC280R6
Dimension Ø280 x 12,5mm
Description

Ø280x12,5 PVC RSC Plain pipe 6m

Slot
Unit pcs.
Price Enquire
Item no. 08RSC280F607
Dimension Ø280 x 12,5mm
Description

Ø280*12,5 PVC RSC Screen 6m

Slot 0,75mm
Unit pcs.
Price Enquire
Item no. 08RSC280C
Dimension
Description

Ø280 PVC RSC Double socket coupler

Slot
Unit pcs.
Price Enquire
Item no. 08RSC315R6
Dimension Ø315 x 15,0mm
Description

Ø315*15 PVC RSC Plain pipe 6m

Slot
Unit pcs.
Price Enquire
Item no. 08RSC315F605
Dimension Ø315 x 15,0mm
Description

Ø315x15 PVC RSC Screen 6m

Slot 0,75mm
Unit pcs.
Price Enquire
Item no. 08RSC315C
Dimension
Description

Ø315 PVC RSC Double socket coupler (Dimension is not VA-approved yet)

Slot
Unit pcs.
Price Enquire


RSC Bottom caps

Flat PVC bottom cap for RSC pipes and screens.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 08RSC090P
Dimension
Description

Ø90 PVC RSC Bottom cap

Slot
Unit pcs.
Price Enquire
Item no. 08RSC110P
Dimension
Description

Ø110 PVC RSC Bottom cap

Slot
Unit pcs.
Price Enquire
Item no. 08RSC125P
Dimension
Description

Ø125 PVC RSC Bottom cap

Slot
Unit pcs.
Price Enquire
Item no. 08RSC160P
Dimension
Description

Ø160 PVC RSC Bottom cap

Slot
Unit pcs.
Price Enquire
Item no. 08RSC200P
Dimension
Description

Ø200 PVC RSC Bottom cap

Slot
Unit pcs.
Price Enquire
Item no. 08RSC225P
Dimension
Description

Ø225 PVC RSC Bottom cap

Slot
Unit pcs.
Price Enquire
Item no. 08RSC250P
Dimension
Description

Ø250 PVC RSC Bottom cap

Slot
Unit pcs.
Price Enquire
Item no. 08RSC280P
Dimension
Description

Ø280 PVC RSC Bottom cap

Slot
Unit pcs.
Price Enquire
Item no. 08RSC315P
Dimension
Description

Ø315 PVC RSC Bottom cap

Slot
Unit pcs.
Price Enquire
